GCP for Archive and Analysis

National PAM SI Cloud Repo: more details on cloud storage and processing from the cloud team

Accessing Data

Check the archive spreadsheet to see if the dataset you are interested in accessing is available in the SWFSC-SAEL bucket. Note: only the raw audio data is uploaded here, see our NCEI archive for additional ancillary data.

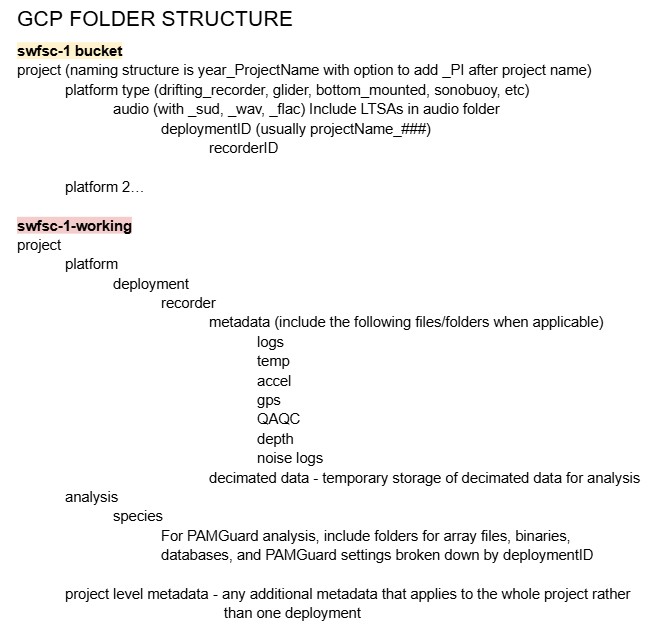

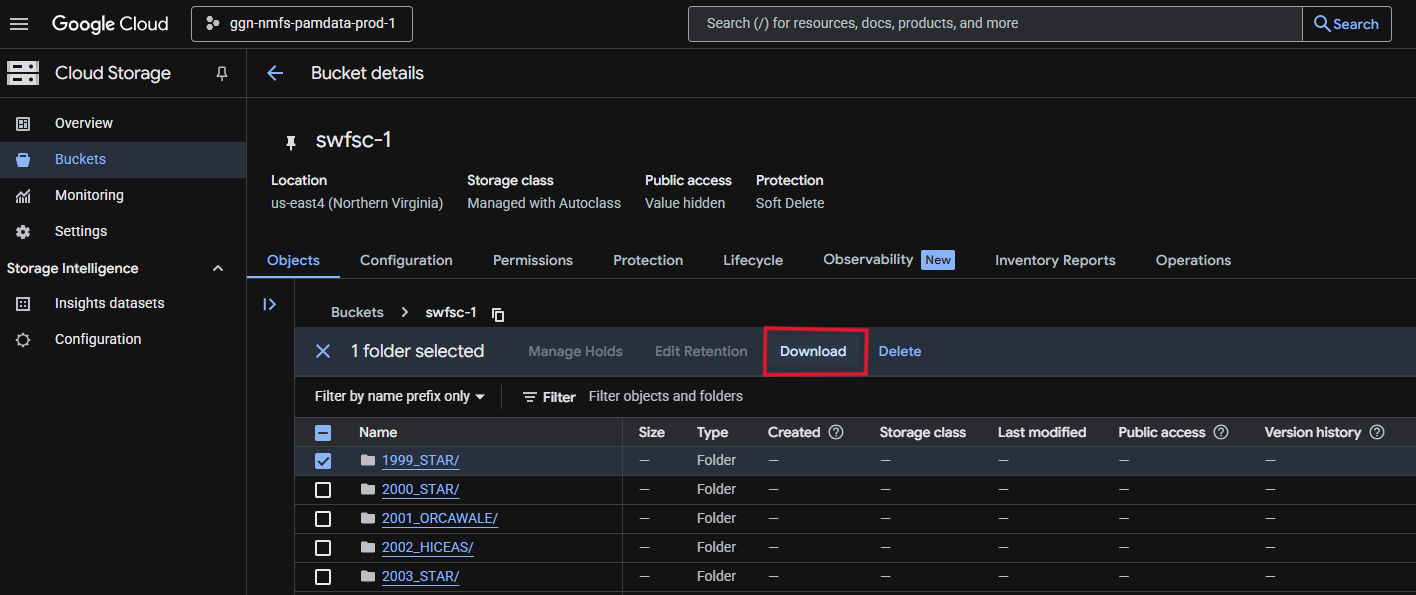

The bucket is broken down by platform -> project -> deployment. You can select all data within a platform, or any subfolder within that directory, and click download.

Cloud Storage

Manual Upload

  1. Open SWFSC bucket in GCP console

  2. Select Upload (Upload files or Upload folder) and navigate to the data you want to upload

  3. Click “Upload”

    Large data files or datasets may crash GCP with this upload method. If you would like to upload large amounts of data, do so through the GCP sdk/gsutil options below

sdk/gsutil Set-Up

  1. Download the Google Cloud CLI installer and install Cloud SDK on your computer
  2. Open the ‘Google Cloud SDK Shell Terminal’, follow the prompts, and select ‘ggn-nmfs-pamdata-prod-1’ as your project

sdk/gsutil Upload

  1. Open the ‘Google Cloud SDK Shell Terminal’
  2. Enter the follow command to upload files to the GCP: gsutil -m cp -r [source pathway to files to be uploaded/] gs:[destination pathway to folder on bucket/]
    • SAEL ADRIFT Example "gsutil -m cp -r E:\DATA\LEG_2\RECORDINGS\CalCurCEAS_004 gs://swfsc-1/drifting_recorder/CalCurCEAS_2024"
  3. Processing should start, wait for terminal prompt to update then refresh the SWFSC bucket website to see your uploaded data

Automated sdk/gsutil Upload

You can use the following R script to automatically run the above command and bulk upload data from a source. R script available here. This script is set up to only run from 6 pm to 6 am on weekdays and full time on weekends, to avoid excess network traffic.

 # ----FUNCTIONS----
# Short recursive space-to-underscore renamer
rename_spaces <- function(path = ".") {
  # Get all files and folders, deepest first
  all_paths <- list.files(path, recursive = TRUE, full.names = TRUE, include.dirs = TRUE)
  all_paths <- all_paths[order(nchar(all_paths), decreasing = TRUE)]

  # Rename each item that contains spaces
  for (p in all_paths) {
    if (grepl(" ", basename(p))) {
      new_path <- file.path(dirname(p), gsub(" ", "_", basename(p)))
      file.rename(p, new_path)
      cat("Renamed:", basename(p), "->", basename(new_path), "\n")
    }
  }
}


# Check for weekday and hour, run between 6 AM and 6 PM on weekdays
is_weekday <- function(x){
  weekdays = c('Thursday', 'Friday', 'Monday', 'Tuesday', 'Wednesday')
  return(weekdays(x) %in% weekdays)
}

is_after_hours <- function(x){
  return(as.integer(format(x,"%H")) < 6 | as.integer(format(x, "%H")) > 18)
}


# Copy function
copy_files_to_GCP <- function(Local_dir, Cloud_dir, file_type = NULL, log_file, offHoursCopy = TRUE) {
  ## List files ####
  file_type <- paste(file_type, collapse = "|") # combine all file types to one regex (uses or expression)
  good_files <- list.files(Local_dir, pattern = file_type, full.names = TRUE, recursive = TRUE)

  ## Copy files ####
  for (file in good_files) {
    # check for after hours, will run any time if offHoursCopy = FALSE above
    if (offHoursCopy) {
      while (is_weekday(Sys.time()) & !is_after_hours(Sys.time())) {
        cat(paste('waiting...',Sys.time(), "\n"))
        Sys.sleep(600) #wait 10 minutes until trying again
      }
    }

    # build a relative GCP path to retain local folder structure
    rel_path <- gsub(paste0("^", Local_dir, "/?"), "", file)
    GCP_path <- paste0("gs://", Cloud_dir, "/", rel_path)

    # create gsutil command
    cmd <- paste0("gsutil -m cp -c -L \"", log_file, "\" \"", file, "\" \"", GCP_path, "\"")

    # pass command to process and print progress message in R console
    message("Uploading: ", file, " -> ", GCP_path)
    system(cmd)
  }


  ## Create Log ####
  # read in log file created in cmd
  log_df <- read.csv(log_file, header = TRUE)

  # subset files that successfully transferred and failed
  successful_log <- subset(log_df, Result == "OK")
  failed_log <- subset(log_df, Result == "ERROR" | Result == "SKIPPED")

  # number of files that successfully copied and failed
  N_files_copied <- nrow(successful_log)
  N_files_failed <- nrow(failed_log)

  # number of folders copied
  successful_log$Folder <- dirname(successful_log$Source)
  num_folders_copied <- length(unique(successful_log$Folder))

  # Total local size and total cloud size
  total_local_size <- sum(as.numeric(successful_log$Source.Size), na.rm = TRUE)
  total_bytes_transferred <- sum(as.numeric(successful_log$Bytes.Transferred), na.rm = TRUE)

  # create summary dataframe
  summary_df <- data.frame(Files_Copied = N_files_copied, N_files_failed, Folders_Copied = num_folders_copied, Total_Local_Size_bytes = total_local_size, Total_Cloud_Size_bytes = total_bytes_transferred)

  xlsx_file <- sub("\\.txt$", ".xlsx", log_file)

  # Create a new workbook
  wb <- createWorkbook()

  # Add Summary sheet
  addWorksheet(wb, "Summary")
  writeData(wb, "Summary", summary_df)

  # Add Success Files Sheet
  addWorksheet(wb, "Completed Files")
  writeData(wb, "Completed Files", successful_log)

  # Add Failed Files sheet
  addWorksheet(wb, "Failed Files")
  writeData(wb, "Failed Files", failed_log)

  # Save the workbook
  saveWorkbook(wb, xlsx_file, overwrite = TRUE)
}





# ----EXAMPLE WORKFLOW----
## ----STEP 1: Define parameters----
library(openxlsx)
# Path to Local Directory you want to copy FROM
Local_dir <- "C:/Users/kourtney.burger/Desktop/test"
# Path to Cloud Directory you want to copy TO
Cloud_dir <- "swfsc-1/drifting_recorder/kbtest"
# Log file name with path
log_file <- paste0(getwd(), "/GCP_transfer_log_", format(Sys.time(), "%Y%m%d_%H%M%S"), ".txt")  #  (used with gsutil -L command). Leave as is, unless you want to change where the log file is saved to. This structure is built to save it to your current working directory
# Copy off hours?
offHoursCopy <- FALSE  # default is TRUE = Copy only on nights/weekends
# Copy all files? Choose file type if you do not want copy all
file_type <- NULL
# file_type <- c("\\.wav$", "\\.log.xml$", "\\.accel.csv$", "\\.temp.csv$", "\\.ltsa$", "\\.flac$")


## ----STEP 2: (Optional) Rename files/folders to remove spaces----
# Spaces within your filenames/foldernames may lead to downstream processing issues
# We recommend you run this and replace any spaces in your ORIGINAL filenames/foldernames
# Risk: If you have documents, code that require the exact names (with spaces), you may have issues
# DO NOT RUN THIS LINE IF YOU NEED TO RETAIN SPACES IN YOUR FILE NAME, these functions will still work
rename_spaces(Local_dir)


## ----STEP 3: Copy files to GCP----
# progress will be printed to the R console, check the output xlsx file for errors
copy_files_to_GCP(
  Local_dir = Local_dir,
  Cloud_dir = Cloud_dir,
  file_type = file_type,
  log_file = log_file,
  offHoursCopy = offHoursCopy
)


# --------------Final Notes:--------------
# - You must have gsutil installed and authenticated on your system
# - Make sure the GCP bucket exists and you have write permissions
# - Output Excel log will be saved to your working directory alongside your log txt file, summarizing success/failures

More information on Cloud Storage

See the PAM SI Cloud Storage website for more information and troubleshooting tips

Cloud Processing

Note

work in progress

Cloud based processing is now available through google workstations using the data you upload to GCP. SAEL has not began processing in the cloud but you can follow the steps below to establish a windows virtual machine (workstation) and access the existing cloud based software

PAM Windows Workstation

Follow the detailed directions here to establish a windows workstation

More Information on Cloud Processing

See the PAM SI Cloud Processing website for more information and troubleshooting tips
